You’ve likely experienced this frustrating paradox: you pull up your performance overlay during a gaming session, expecting to see a smooth frame rate, only to find your GPU usage is pegged at 100% while your FPS is crawling along at 30 or lower.

At first glance, this seems like a good thing. After all, you want your expensive graphics card to be fully utilized, right? However, in this specific scenario, 100% usage is not a sign of victory—it is a diagnostic scream for help.

This guide dives deep into the technical mechanics of why this happens, moving beyond simple explanations to offer specialist-level analysis. We will dissect the “false bottleneck,” corrupt render pipelines, and the hidden gremlins of power delivery that cause high utilization but low output.

The Full Effort, Zero Results Paradox

In a perfectly optimized system, 100% GPU usage is the goal—it means your graphics card is working as hard as it can to push pixels. However, context is king. If your system is pulling 300 watts at 100% usage and delivering 144 FPS, that is a win. If your system is pulling 80 watts at “100%” usage and only delivering 24 FPS, the card is spinning its wheels in the mud.

Here is the fundamental truth you need to understand: Utilization percentage alone does not measure quality of work; it only measures activity.

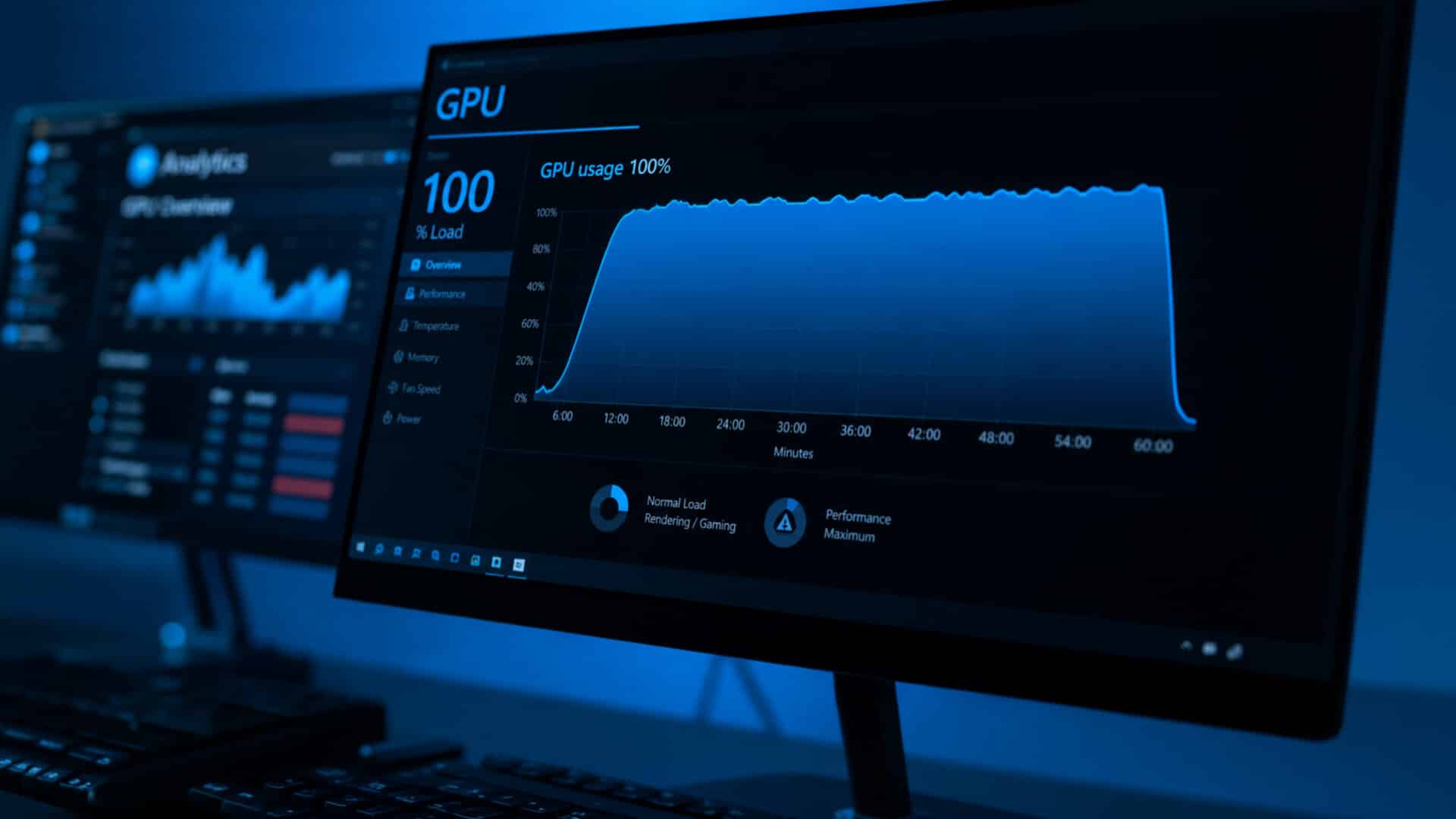

Modern GPUs are complex processors. A “100%” reading on a tool like MSI Afterburner or Task Manager usually represents the percentage of time the GPU scheduler is busy. However, the GPU can be “busy” doing useless work—like repeatedly failing to render a frame due to a driver timeout, waiting on a choked cache, or processing massive amounts of corrupted data.

Think of it like a delivery truck. 100% utilization means the engine is running and the wheels are turning. But if the truck is stuck in mud (a driver issue) or the GPS is sending it in circles (a draw call bottleneck), it is working at maximum capacity but going nowhere fast.

The Dirty Secret: Not All “100%” Readings Are Equal

Before we dive into root causes, a critical warning: the “100% GPU usage” you see depends heavily on which tool you’re using and which engine it’s measuring.

• Task Manager measures GPU usage on a per-process basis via WDDM (Windows Display Driver Model). It can miss workloads split across multiple processes and often misreports compute-heavy tasks.
• MSI Afterburner / RTSS samples the primary 3D engine more accurately, but still aggregates multiple execution units (shaders, texture mapping, rasterizers) into a single percentage.
• HWInfo64 can show separate utilization for “GPU Core,” “GPU Memory Controller,” “Video Encode,” and “Compute Engine”—and they often disagree wildly.

It is entirely possible to see:

• Task Manager: 100%
• Afterburner: 70%
• HWInfo (Memory Controller): 30%

all at the same moment. The “100%” reading is not a lie, but it is a simplification. When troubleshooting, trust HWInfo64 or GPU-Z sensors over Task Manager. And if possible, look at per-utilization type (shader vs. memory vs. copy engine), not just the aggregate number.

Root Cause 1: The Silent CPU Bottleneck (The Single-Thread Crush)

Most gamers know that a CPU bottleneck usually looks like low GPU usage (e.g., GPU at 60%, CPU at 100%). However, there is a specific, more insidious version: The Single-Thread Crush.

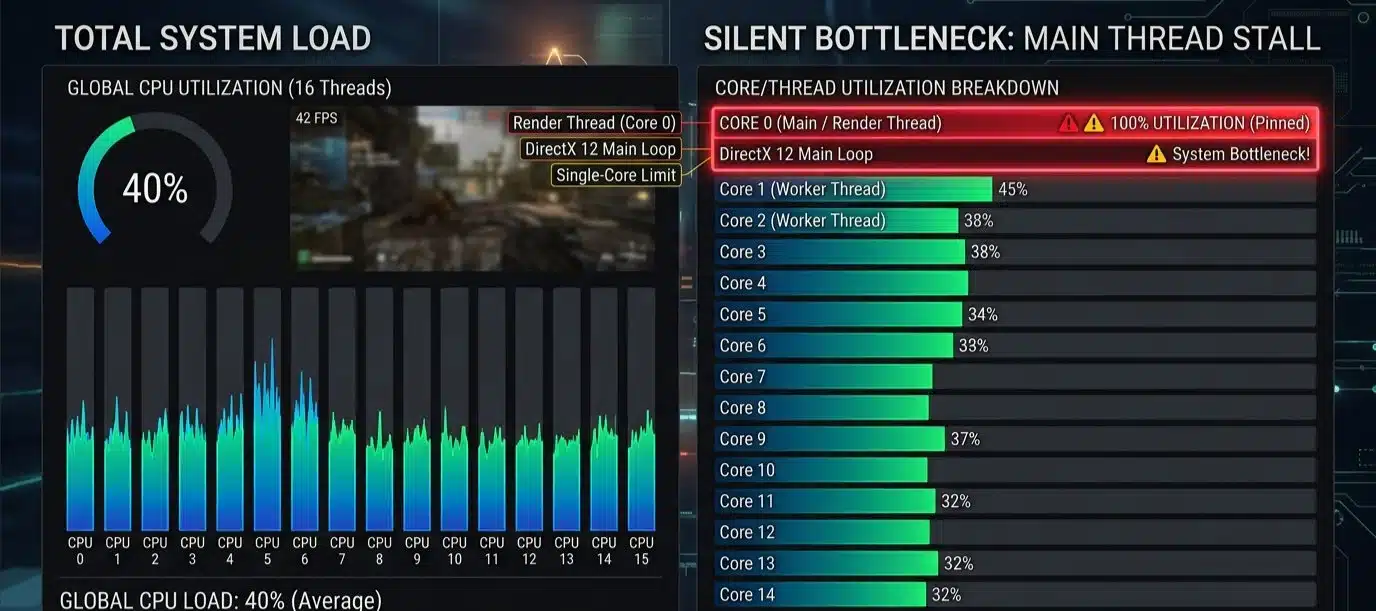

While your CPU may show 40% total utilization across 16 threads, one single core responsible for “Render Thread” or “Main Thread” could be pinned at 100%. When this happens, the CPU cannot send instructions to the GPU fast enough. The GPU, starved of data, actually idles for nanoseconds at a time—but monitoring tools often misread this rapid stop-start as “100% active.”

In this scenario, the GPU briefly idles while waiting for the CPU, then bursts to full speed, then idles again—sometimes hundreds of times per second. Most monitoring tools average this activity over a sampling window (typically 200–1000ms). If the GPU is active for 80% of that window and idle for 20%, the tool may report 100% (due to rounding and averaging artifacts) or a value very close to it, especially if the idle periods are shorter than the tool’s measurement granularity. This is not a ‘lie,’ but it is a measurement limitation. A truly locked, flat 100% with no fluctuation is more likely a different bottleneck; see the diagnostic checklist below.

Why High CPU Load Creates Low FPS

When the CPU struggles to keep up, the GPU ends up rendering the same frame data repeatedly because no new instructions have arrived. This creates a situation where the GPU is technically “active” (waiting/listening) but producing a very low frame count.

The Fix:

• Monitor Per-Core Usage: Do not look at the overall CPU percentage. Open Task Manager (or HWInfo64) and view “Logical Processors.” If any single core hits 95-100%, that is your culprit.
• Overclock Memory: CPU bottlenecks are often RAM bottlenecks. Faster RAM (or tighter timings) increases the speed at which the CPU feeds the GPU.
• Raise Resolution (Counter-Intuitive—Use With Caution): In rare, specific cases, increasing resolution can reduce CPU back-pressure by making each frame more expensive for the GPU, which lowers the number of frames the CPU needs to prepare per second. This can smooth out frame timing and, paradoxically, make the game feel less stuttery. However, this almost never increases average FPS—it typically lowers peak FPS while improving consistency. Only try this if you are certain you have a single-thread CPU bottleneck and you have spare GPU headroom at higher resolutions. For most users, lowering CPU-intensive settings (draw distance, physics, crowd density) is the correct fix.

Root Cause 2: Corrupt Drivers & Command Buffer Loops

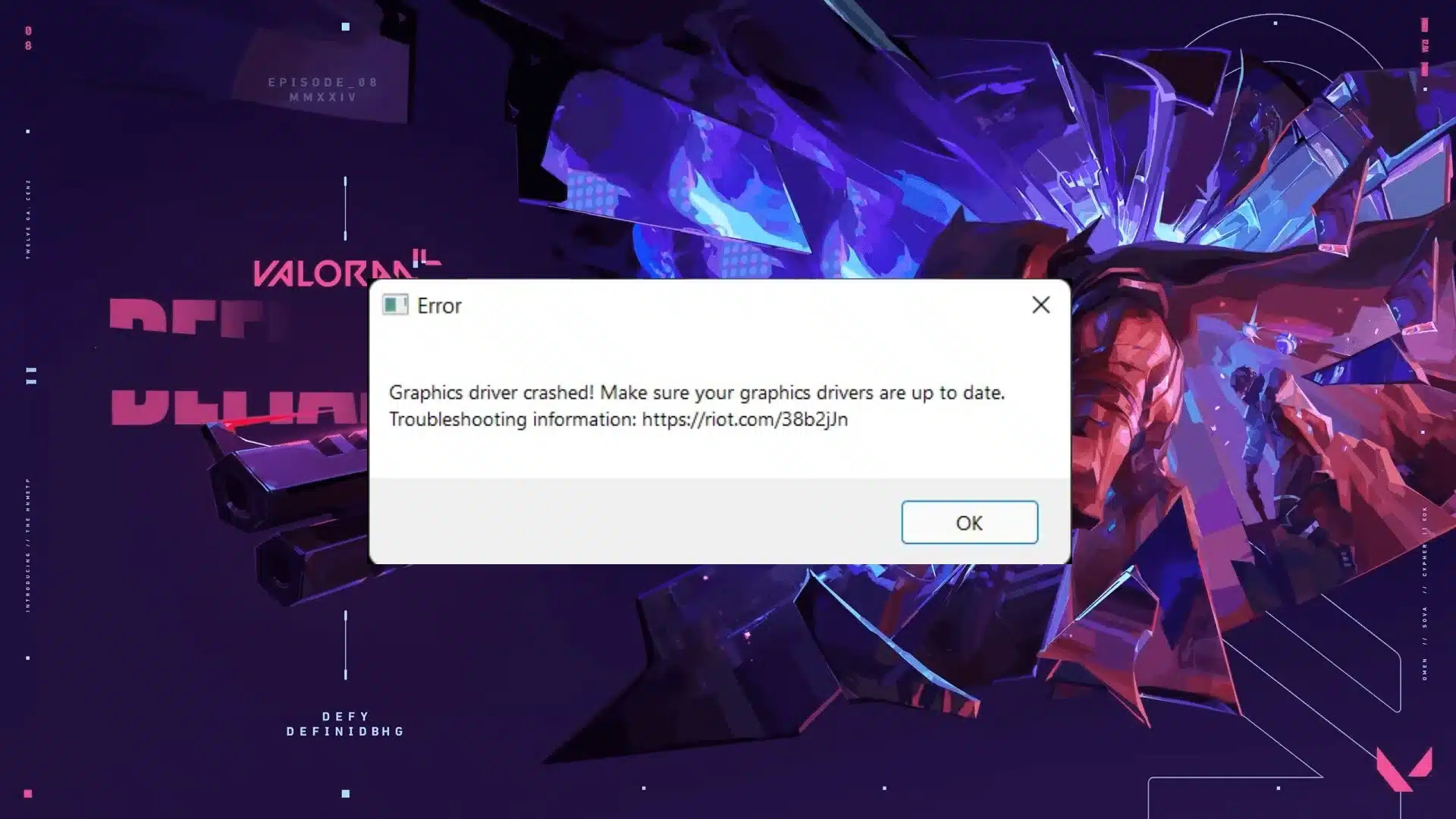

This is a common cause of the “100% Usage but Low FPS” paradox, frequently observed across forums for Dell, Lenovo, and custom builds. If you recently swapped a motherboard, updated Windows, or installed a new card, the driver architecture might be corrupt, but not corrupt enough to crash.

A faulty driver can enter a “Command Buffer Overflow” state. The GPU accepts the commands, fills its buffer to 100%, but then gets stuck processing invalid or stalled workload data. The hardware reports “Busy” (100% usage) to the OS because it is actively trying to compute a loop, but it never reaches the “Render Complete” stage to output the frame.

The DDU Protocol

Standard “Express Install” driver updates often leave remnants of old drivers that cause this conflict. To fix this, you need a nuclear option:

• Download Display Driver Uninstaller (DDU), via TechPowerUp.
• Boot Windows into Safe Mode (this stops Windows from automatically reinstalling a generic driver).
• Run DDU to wipe every trace of AMD or NVIDIA drivers.
• Reboot normally and install the latest driver from the manufacturer’s website (not just the Windows Update version).

Root Cause 3: V-Sync Traps and Double-Buffering Traps

A simple but often overlooked cause is synchronization settings. If you have V-Sync enabled globally or in-game, and your monitor is set to 60Hz, the GPU will intentionally idle to avoid tearing. However, if your GPU cannot consistently hit 60 FPS, V-Sync creates a catastrophic feedback loop.

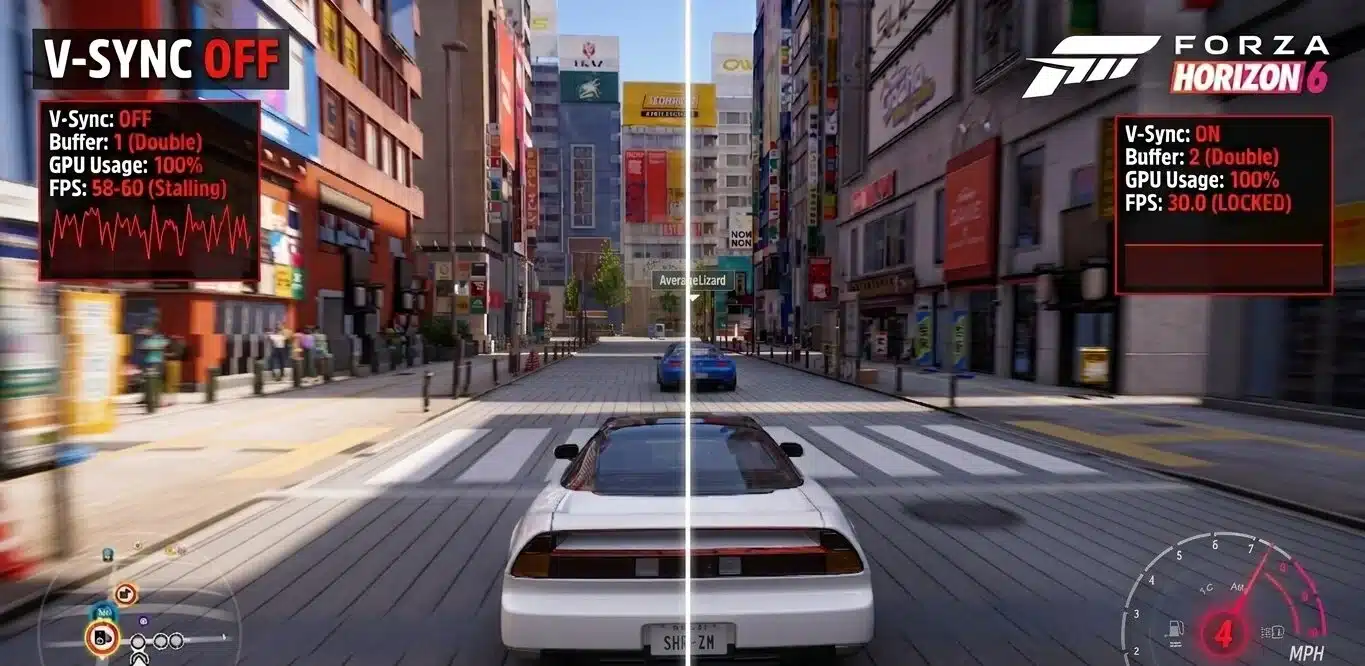

The Halving Effect: If your GPU can only render 58 FPS but V-Sync requires 60, many engines will force the render queue down to 30 FPS (half the refresh rate). In this state, the GPU is still working hard (100%) trying to hit that 60 FPS wall, failing, and dumping frames.

The Fix:

• Disable V-Sync in-game and enforce a frame cap via NVIDIA Control Panel or RTSS instead.
• If you have a G-Sync or FreeSync monitor, ensure V-Sync is turned ON in the driver control panel but OFF in the game, and cap your FPS 3 frames below your monitor’s max refresh rate.

Root Cause 4: Thermal Throttling at the Memory Junction

Heat is the enemy of silicon stability. Modern GPUs have sophisticated boost algorithms, but they also have aggressive thermal limits.

100% Usage at Low Clocks: You can have 100% utilization, but if your core clock has dropped from 1900Mhz to 300Mhz because your memory junction temperature hit 110°C, you are going to get slideshow FPS. The GPU is technically “fully utilized” at that slow speed, but the throughput is destroyed.

How to spot it:

Do not just look at the “GPU Temp.” Look at “Hot Spot” or “Memory Junction” temperature. If the hot spot is above 105°C or the core clock is dropping significantly below the advertised base clock, you are thermal throttling.

The Fix:

• Undervolt: This is a highly effective fix. Using MSI Afterburner, you can often drop temperatures by 10-15°C while increasing clock stability, thus raising FPS even at “100%” usage.

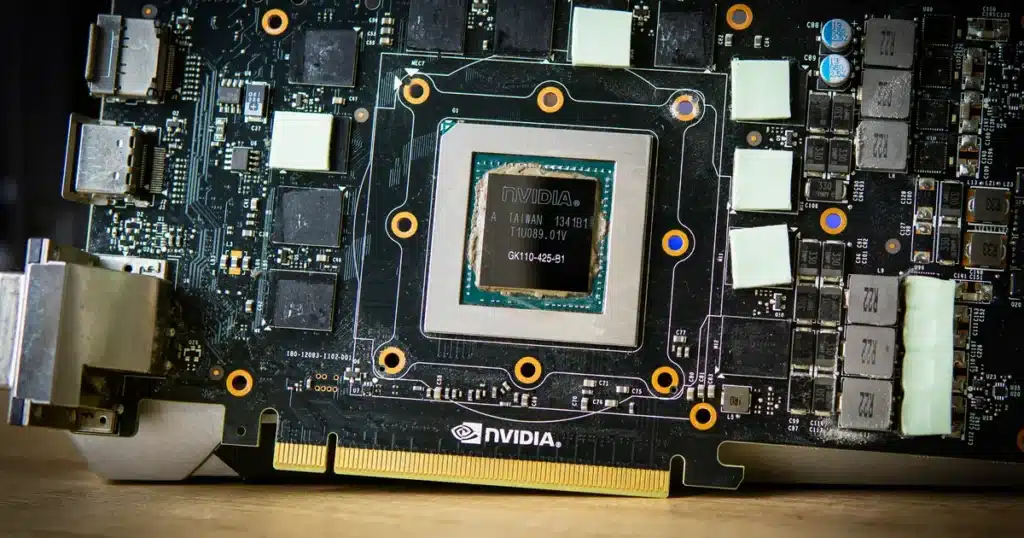

• Repaste: If your GPU is older than 2 years, the thermal paste between the die and the heatsink has likely pumped out. This is a common issue with older, high-wattage powerhouses. If you are trying to decide between buying a used, older flagship that runs hot versus a newer, highly efficient mid-range card, see our head-to-head breakdown of the RTX 4060 vs RTX 3080, where we analyze how generational power draws affect thermal efficiency.

Root Cause 5: VRAM Bottlenecks and PCIe Texture Swapping

When you run out of Video RAM (VRAM), the GPU is forced to use your system RAM (or SSD page file) as overflow. System RAM is significantly slower than VRAM.

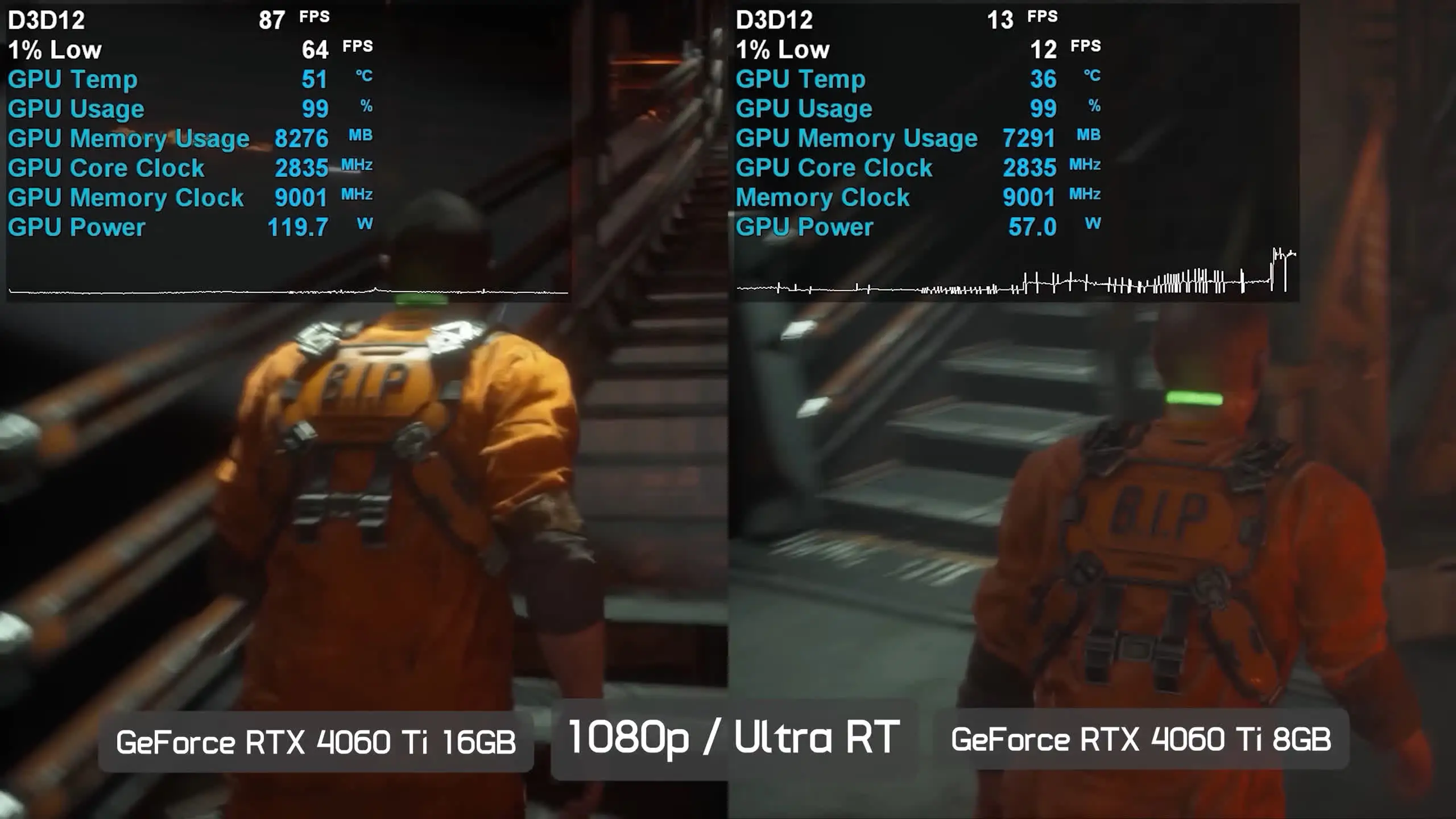

The “100% Usage” Illusion: When VRAM fills up (e.g., 8GB maxed out), the GPU spends 90% of its time waiting for texture data to swap over the PCIe bus. While it is waiting, it is technically “active,” so Task Manager shows 100% usage. But because it is waiting on slow I/O, it only outputs 15 frames per second.

NVIDIA and AMD drivers handle overflow differently. NVIDIA cards tend to stutter more aggressively when VRAM is full, while AMD cards may simply drop frames.

When VRAM fills up, performance tanks. This highlights a bizarre trend in recent GPU generations where newer cards sometimes pack less memory than their predecessors. We heavily explored this specific architectural bottleneck in our deep dive on the RTX 4060 vs RTX 3060 (12GB), proving why the older card’s 12GB frame buffer sometimes handles heavy texture loads better than a newer 8GB card.

The Fix:

• Lower Texture Quality specifically. This is the primary consumer of VRAM.
• Lower Render Resolution (or use DLSS/FSR) to reduce the memory footprint of each frame.

If you’re considering upgrading your hardware entirely to bypass these memory traps altogether, check out our comprehensive matchup of the latest current-gen contenders, the RTX 5060 Ti vs RX 9060 XT, to see how their updated memory configurations and upscaling tech handle modern gaming workloads.

The Diagnostic Checklist

To solve this, you must act like a surgeon. Do not guess. Isolate the variables.

The Ultimate “Nuclear” Reset

If you have tried everything above and nothing works, you are likely dealing with a firmware or Windows corruption that standard tools cannot fix.

• Flash GPU BIOS (VBIOS): Sometimes, a mining BIOS or a corrupted firmware locks the card into a low-power state (P-State 8). Use GPU-Z to check if your “Default Clock” matches the manufacturer spec. If not, flash the original BIOS.
• Registry Deep Clean: Use NvidiaProfileInspector to click “Reset All NVIDIA Driver Settings.” Standard control panels often miss hidden profile glitches.
• Hardware Isolation: Reseat the GPU. Dust in the PCIe slot can cause the lane width to drop from x16 to x1. A x1 lane connection will show 100% usage but terrible FPS because the bandwidth is crippled. Check this in GPU-Z (Bus Interface section). Run the render test; it should say “PCIe x16 4.0 @ x16 4.0.”

Before flashing the vBIOS, confirm the issue with GPU-Z’s power sensor. A card stuck at 80W when it should pull 250W at “100% usage” is a clear diagnostic signal—often a corrupted power state table, a loose power cable, or a failed VRM phase.

Conclusion

A GPU at 100% usage with low FPS is rarely a sign of a “dying” card; it is almost always a sign of a miscommunication. Whether it is a single CPU thread screaming for help, a VRAM buffer overflowing, or a driver stuck in a command loop, the solution lies in meticulous monitoring.

Remember: Utilization measures activity; Frame rates measure results. Do not let the 100% number fool you into ignoring the other metrics. Your GPU is working hard—you just need to tell it to work smart.
